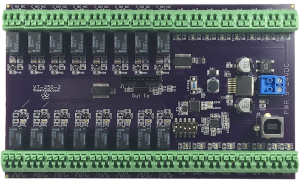

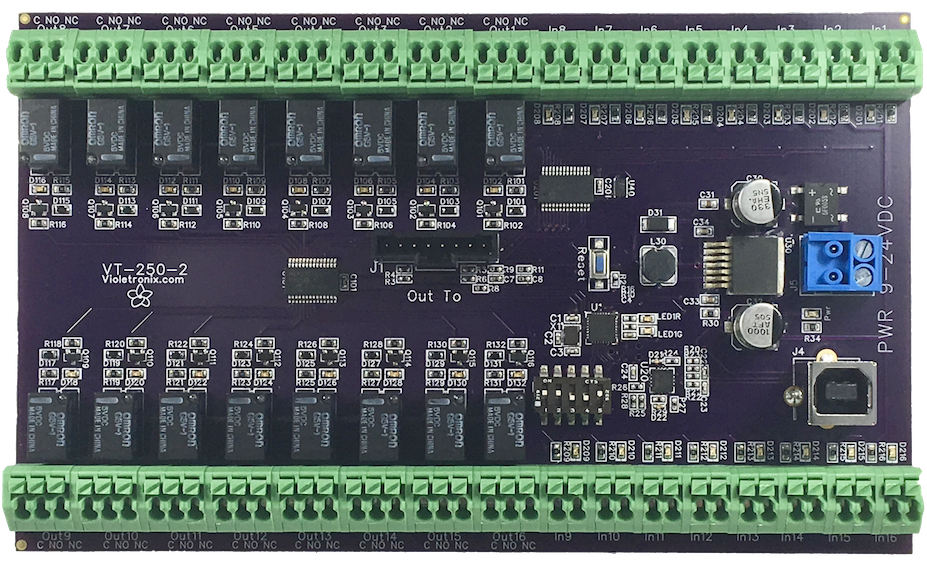

VT-250

– Expandable 16 point Input and Output USB Serial control board

Missing Option: Firmware Type
Loading Available Options
Maximum quantity exceeded
Minimum purchase amount of 1 items is Required
Maximum purchase amount of 0 is Allowed

Description:

  • Provides 16 each Digital Inputs and Dry Contact Outputs controlled via USB serial port.

Features:

  • Controls up to 96 additional Inputs (VT-251) and 96 additional Outputs (VT-252) via 16 point expander boards for a total of 128 each Input and Outputs.
  • LEDs indicating Input (Green) and Output (Red) activity.
  • Form C (SPDT) 1 Ampere Output relays.
  • Screw-less field wiring termination blocks for 22-16 AWG field wires.
  • Detachable and polarity insensitive power connector with presence LED (Green)
  • DIP switch configurable Baud Rates of 9600, 19200, 57600, and 115200
  • Field updatable firmware.
  • Operational Status LEDs, Green for normal activity, Red for error conditions.
  • Serial port  activity LEDs, for Transmit and Receive operations (Yellow)
  • Designed for mounting using Wago 288-600 DIN rail tray.
  • Dimensions X: 6.535 inches, Y: 3.95 inches
  • Board material: Industry standard FR4 94-V0 fire resistant self extinguishing fiberglass epoxy.

Cut Sheet:
